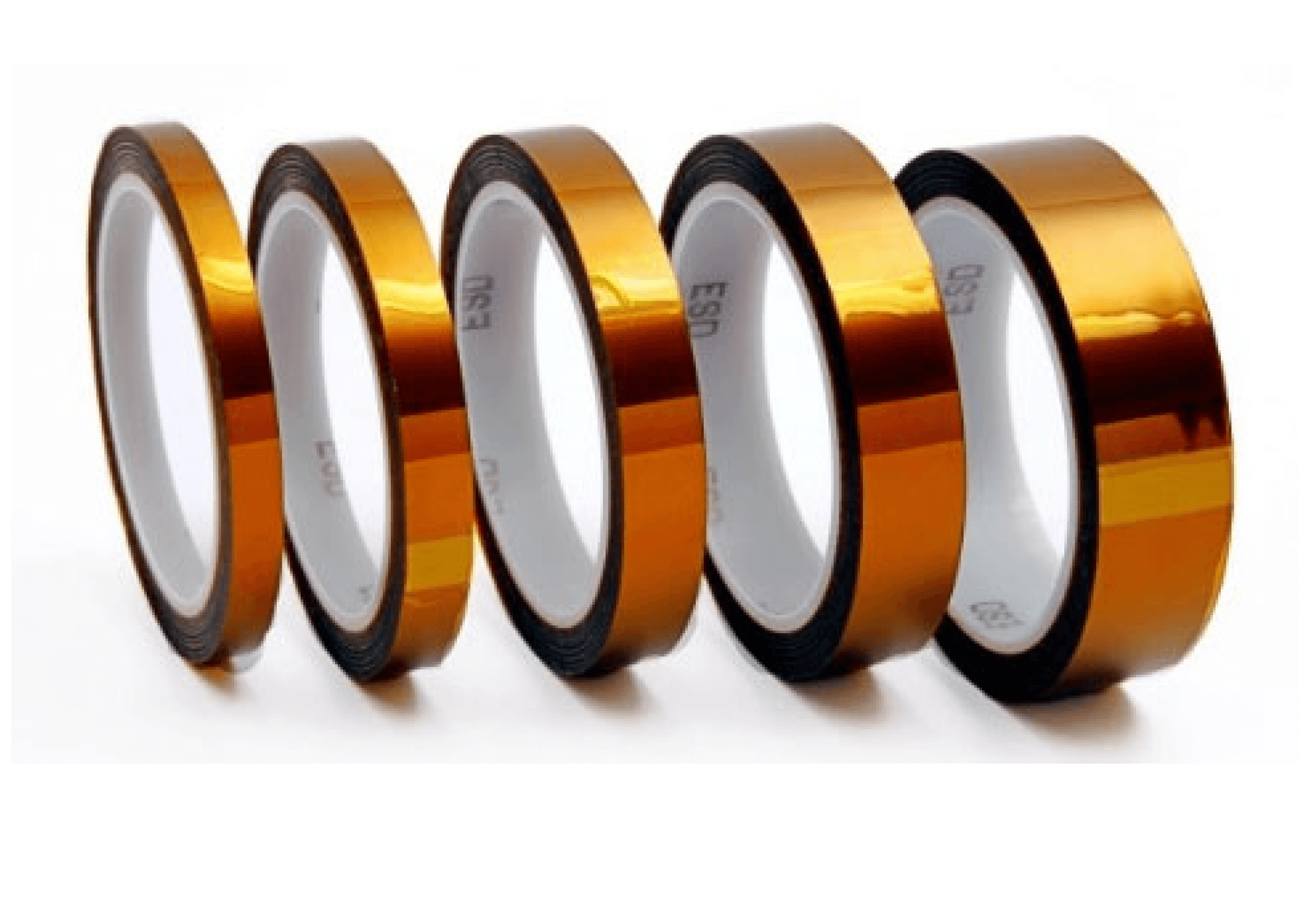

ESD Kapton Tape - 33 meter
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
ESD Kapton Tape:
Kapton polyimide backing and silicone adhesive offers good thermal resistance and excellent dissapative properties. This tape is used where toughness, puncture resistance, extreme resistance to heat, and flame retardance are required.
Application:
Used for protection in wave soldering. Is being used as ground barrier and phase insulation in high performance torroidal coils. Also used as an outer wrap on small bobbin wound coils and on form wound coils for traction motors.
ESD Kapton Tape Specifications:
| Description | Unit | Property data | Remark |
| Construction | Tawny Tape Surface+ silicone | ||
| Thickness of film | mm | 0.025 | |
| Adhesive | Silicone | ||
| Adhesion power (normal) | N/25mm | >6 | |
| Tensile Strength | N/25mm | >100 | |
| Total Thickness | mm | 0.055 +/- 0.01 | |
| Surface Resistivity | Film side | < 10*9 ohm | |
| Temperature Class | °C | 260 | |
| Humidity | 60 +/- 5 | ||
| Color | Tawny |
Certification:
